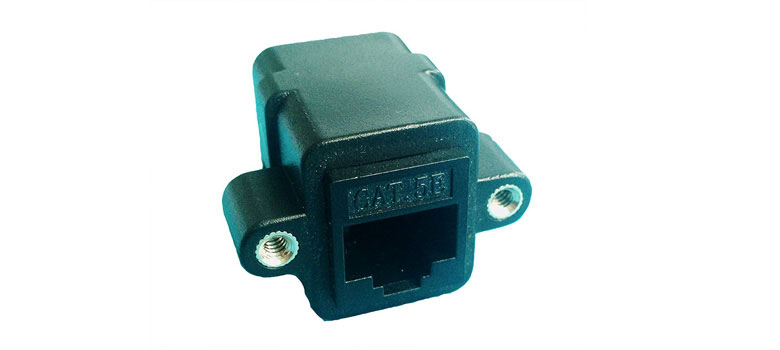

Panel Mount Coupler Cat5e UTP Unshield #MCPM3001

High Quality Cat5E UTP Female to Female Coupler is perfect for combining two Patch cables to achieve connectivity through a panel. This allows the user to provide connectivity from a source that is contained within a secure location. The coupler is short and designed for minimal signal loss. It meets or exceeds Category 5E performance in compliance with the TIA/EIA-568-C.2 specifications. The connectors with gold-plated contacts, molded strain-relief boots, provide durability, and ensure a secure connection.

Key Features
  • High Quality CAT5E UTP Female to Female Coupler
  • The screw design helps to connect the device tightly
  • Convenient way to combine two Patch cables through a panel without any signal loss
  • Meets or exceeds TIA/EIA -568-C.2 and ISO/IEC 11801 Specification
  • Provides outstanding transmission performance and low signal loss
  • Tested to 350 MHz and support 1000 Base-T Gigabit Ethernet
Product Specifications
  • Model No.: MCPM3001
  • Available Length: /
  • Available Gauge: /
  • Color: Black or Customized
  • Nylon mesh: Customized
  • Ferrite Core: Customized
  • Connector: Gold or Nickel plated
  • Packing: PE bag, Zip bag, Box, Hang card, Blister
  • Approval: RoHS Compliant
Electrical Characteristics
  • Conductor DC Resistance – 89 Ohm/km (maximum)
  • Insulation Resistance –100 Ohm/km (minimum)
  • Dielectric Strength- 500 MV/m
  • Propagation Delay –545ns/100m (maximum)
  • Delay Skew- 45ns/100m (maximum)
Physical Characteristics:
  • Voltage Rating–30V
  • Temperature Rating – 80℃
  • Operating Temperature Range – -20℃- 80℃
  • Storage Temperature Range – -25℃- 85℃
  • Approvals – RoHS, CE, UL Compliant
