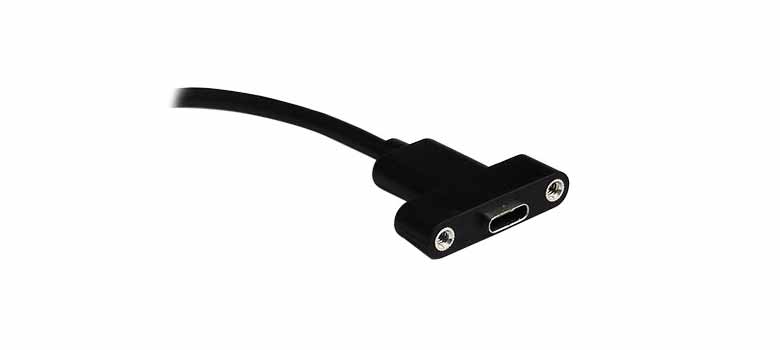

Panel Mount Cable USB C Female to C Female #MPMC2003

Key Features

• Super Speed USB 3.1 Type C (USB-C) Female to Female Panel Mount Cable
• The screw design helps to connect the device tightly
• Convenient way to combine two USB Type C cables through a panel without any signal loss
• Ultra-Fast Data Transfer/Sync (up to 10 Gbps), also support USB quick charging up to 5V/3A, and high performance video and audio transfer
• Flexible PVC jacket, Foil and braid shielding, and the twisted pair construction make a better performance

Product Specifications

• Model No.: MPMC2003
• Available Length: 0.2m
• vailable Gauge: 34/32/26AWG
• Color: Black or Customized
• Nylon mesh: Customized
• Connector: Gold or Nickel plated
• Packing: PE bag, Zip bag, Box, Hang card, Blister
• Approval: RoHS Compliant

Electrical Characteristics

• Nominal Velocity of Propagation – 10Gbps
• DC Resistance – 300V
• Dielectric Strength – AC 500V/minute
• Insulation Resistance – 10MΩ

Physical Characteristics:

• Voltage Rating – 30V
• Maximum Bend Radius – 90mm
• Temperature Rating – 80℃
• Operating Temperature Range – -20℃- 80℃
• Storage Temperature Range – -25℃- 85℃
• Approvals – RoHS, CE, UL Compliant

Conductor 1 (4 pairs)

• Conductor Type – 34AWG Tinned Copper
• Insulation – Foamed PE SKIN
• Drain Wire – 34AWG Tinned Copper
• Shield – Aluminum Foil, 100% Coverage

Conductor 2 (1 pair)

• Conductor Type – 32AWG Tinned Copper
• Insulation – HDPE
• Shield – Aluminum Foil, 100% Coverage

Conductor 3 (4 cores)

• Conductor Type – 32AWG Tinned Copper
• Insulation – HDPE

Conductor 4 (2 cores)

• Conductor Type – 26AWG Tinned Copper
• Insulation – HDPE

Overall Cable

• Foil Shield – Aluminum Foil, 100% Coverage
• Braided Shield – 16/9/0.08, Bare Copper
• Jacket – PVC, Black, O.D.: 4.2±0.2mm

Connectors

• Connector Type – USB 3.1 Type C Female
• Pin Construction – Phosphor Copper
• Injection – 45P PVC
• Plating – Nickel
