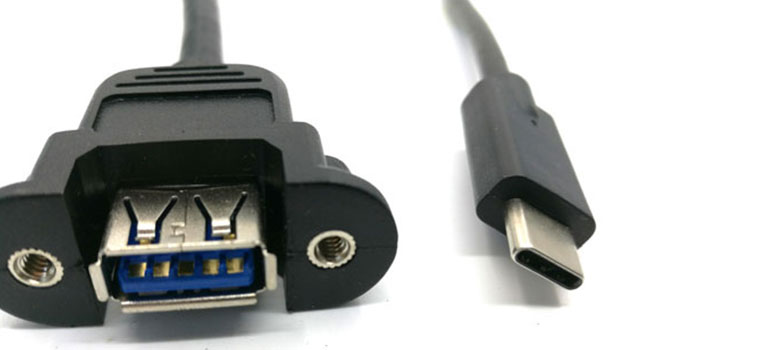

Panel Mount Cable USB C Female to 3.0 A Female #MPMC2002

Key Features

• Super Speed USB 3.0 Type C (USB-C) Male to Type A (USB-A) Female Panel Mount Cable
• The screw design helps to connect the device tightly
• CoConvenient way to extend a USB Type-C connection out to a standard USB 3.0 Type-A connector through a panel without any signal loss
• Backward compliant with high speed USB 2.0 (480Mbps), full speed USB 1.1 (12 Mbps) and low speed USB 1.0 (1.5 Mbps)
• Flexible PVC jacket, Foil and braid shielding, and the twisted pair construction make a better performance

Product Specifications

• Model No.: MPMC2002
• Available Length: 0.2m
• Available Gauge: 32/32/26AWG
• Color: Black or Customized
• Nylon mesh: Customized
• Ferrite Core: Customized
• Connector: Gold or Nickel plated
• Packing: PE bag, Zip bag, Box, Hang card, Blister
• pproval: RoHS Compliant

Electrical Characteristics

• Nominal Velocity of Propagation – 5Gbps
• DC Resistance – 300V
• Dielectric Strength – AC 500V/minute
• Insulation Resistance – 10MΩ

Physical Characteristics:

• Voltage Rating – 30V
• Maximum Bend Radius – 90mm
• Temperature Rating – 80℃
• Operating Temperature Range – -20℃- 80℃
• Storage Temperature Range – -25℃- 85℃
• Approvals – RoHS, CE, UL Compliant

Conductor 1 (2 pairs)

• Conductor Type – 32AWG Tinned Copper
• Insulation – Foamed PE SKIN
• Drain Wire – 32AWG Tinned Copper
• Shield – Aluminum Foil, 100% Coverage

Conductor 2 (1 pair)

• Conductor Type – 32AWG Tinned Copper
• Insulation – HDPE
• Shield – Aluminum Foil, 100% Coverage

Conductor 3 (2 conductors)

• Conductor Type – 26AWG Tinned Copper
• Insulation – HDPE

Overall Cable

• Foil Shield – Aluminum Foil, 100% Coverage
• Braided Shield – 16/4/0.12, AL-MG
• Jacket – PVC, Black, O.D.: 4.2±0.2mm

Connector 1

• Connector Type – USB 3.0 Type C Male
Pin Construction – Phosphor Copper Injection – 45P PVC Plating – Nickel

Connector 2

• Connector Type – USB 3.0 Type A Female
• Pin Construction – Phosphor Copper
• Injection – 45P PVC
• Plating – Nickel
