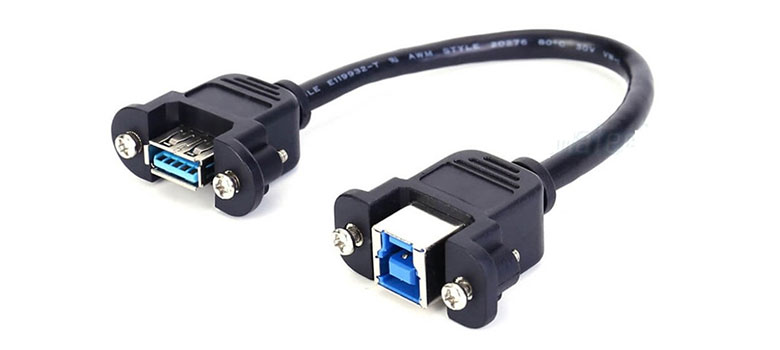

Panel Mount Cable USB 3.0 B Female to A Female #MPMC2004
High Quality USB 3.0 B Female to A Female Panel Mount Cable is the perfect solution for combining two USB cables to achieve connectivity through a panel. This allows the user to provide connectivity from a source that is contained within a secure location. The cable is short and designed for minimal signal loss. It provides a transfer rate up to 5 Gbps depending upon the peripheral’s USB version, and easily attaches to any USB device. Foil and braid shielding provide complete immunity to EMI/RFI interference, and the twisted pair construction helps reduce crosstalk thus ensuring high speed, error-free data transfer.
Key Features
- High Speed USB 3.0 B Female to A Female Panel Mount Cable
- The screw design helps to connect the device tightly
- Convenient way to combine two USB cables through a panel without any signal loss
- Support super speed USB 3.0 devices and the transfer rate reaches to 5 Gbps
- Backward compliant with high-speed USB 2.0 (480Mbps), full-speed USB 1.1 (12 Mbps) and low speed USB 1.0 (1.5 Mbps)
- Flexible PVC jacket, Foil and braid shielding, and the twisted pair construction make a better performance
Product Specifications
- Model No.: MPMC2004
- Available Length: 0.2m
- Available Gauge: 28/28/24AWG
- Color: Black or Customized
- Nylon mesh: Customized
- Ferrite Core: Customized
- Connector: Gold or Nickel plated
- Packing: PE bag, Zip bag, Box, Hang card, Blister
- Approval: RoHS Compliant
Electrical Characteristics
- Nominal Velocity of Propagation – 5Gbps
- DC Resistance – 300V
- Dielectric Strength – AC 500V/minute
- Insulation Resistance – 10MΩ
Physical Characteristics:
- Voltage Rating – 30V
- Maximum Bend Radius – 90mm
- Temperature Rating – 80℃
- Operating Temperature Range – -20℃- 80℃
- Storage Temperature Range – -25℃- 85℃
- Approvals – RoHS, CE, UL Compliant
Conductor 1 (2 pairs)
- Conductor Type – 28AWG Tinned Copper
- Insulation – Foamed PE SKIN
- Drain Wire – 28AWG Tinned Copper
- Shield – Aluminum Foil, 100% Coverage
Conductor 2 (1 pair)
- Conductor Type – 28AWG Tinned Copper
- Insulation – HDPE
- Shield – Aluminum Foil, 100% Coverage
Conductor 3 (2 cores)
- Conductor Type – 24AWG Tinned Copper
- Insulation – HDPE
Overall Cable
- Drain Wire – 28AWG Bare Copper
- Foil Shield – Aluminum Foil, 100% Coverage
- Braided Shield – 16/8/0.12, Al/Mg
- Jacket – PVC, Black, O.D.: 5.5±0.2mm
Connector 1
- Connector Type – USB 3.0 B Female
- Pin Construction – Phosphor Copper
- Injection – 45P PVC
- Plating – Nickel
Connector 2
- Connector Type – USB 3.0 A Female
- Pin Construction – Phosphor Copper
- Injection – 45P PVC
- Plating – Nickel
