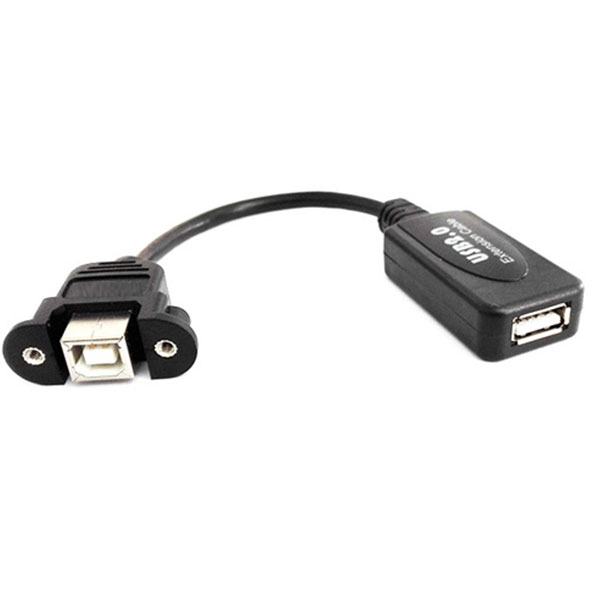

Panel Mount Cable USB 2.0 B Female to A Female with IC #MPMC2006

Key Features

• High Speed USB 2.0 B Female to A Female (with IC chipset) Panel Mount Cable
• The IC chipset design helps to connect an USB cable up to 10m
• The screw design helps to connect the device tightly
• Convenient way to combine two USB cables through a panel without any signal loss
• Support high speed USB 2.0 devices and the transfer rate reaches to 480 Mbps
• Backward compliant with full-speed USB 1.1 (12 Mbps) and low speed USB 1.0 (1.5 Mbps)
• Flexible PVC jacket, Foil and braid shielding, and the twisted pair construction make a better performance

---

Product Specifications

• Model No.: MPMC2006
• Available Length: 0.2m
• Available Gauge: 28/24AWG
• Color: Black or Customized
• Nylon mesh: Customized
• Ferrite Core: Customized
• Connector: Gold or Nickel plated
• Packing: PE bag, Zip bag, Box, Hang card, Blister
• Approval: RoHS Compliant

---

Electrical Characteristics

• Nominal Velocity of Propagation – 480Mbps
• DC Resistance – 300V
• Dielectric Strength – AC 500V/minute
• Insulation Resistance – 10MΩ

---

Physical Characteristics:

• Voltage Rating – 30V
• Maximum Bend Radius – 90mm
• Temperature Rating – 80℃
• Operating Temperature Range – -20℃- 80℃
• Storage Temperature Range – -25℃- 85℃
• Approvals – RoHS, CE, UL Compliant

Conductor 1 (1 pair)

---

• Conductor Type – 28AWG Tinned Copper
• Insulation – Foamed PE SKIN
• Shield – Aluminum Foil, 100% Coverage

---

Conductor 2 (2 cores)

• Conductor Type – 24AWG Tinned Copper
• Insulation – HDPE

---

Overall Cable

• Drain Wire – 28AWG Bare Copper
• Foil Shield – Aluminum Foil, 100% Coverage
• Braided Shield – 16/4/0.10, CCS
• Jacket – PVC, Black, O.D.: 4.8±0.2mm

---

Connector 1

• Connector Type – USB 2.0 B Female
• Pin Construction – Phosphor Copper
• Injection – 45P PVC
• Plating – Nickel

---

Connector 2

• Connector Type – USB 2.0 A Female
• Pin Construction – Phosphor Copper
• Injection – 45P PVC
• Plating – Nickel
