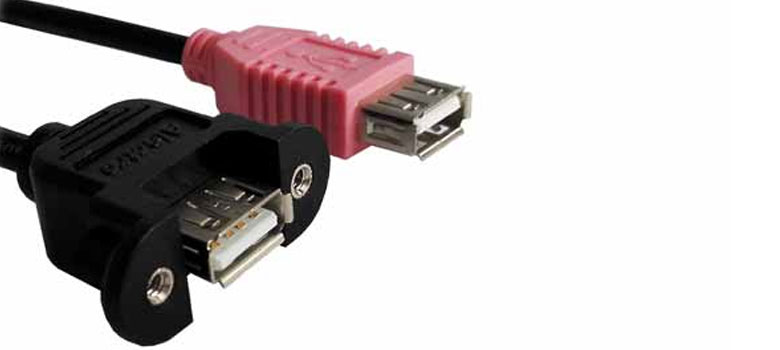

Panel Mount Cable USB 2.0 A Female to A Female #MPMC2008

High Quality USB 2.0 A Female to A Female Panel Mount Cable is the perfect solution for combining two USB cables to achieve connectivity through a panel. This allows the user to provide connectivity from a source that is contained within a secure location. The cable is short and designed for minimal signal loss. It provides a transfer rate up to 480 Mbps depending upon the peripheral’s USB version, and easily attaches to any USB device. Foil and braid shielding provide complete immunity to EMI/RFI interference, and the twisted pair construction helps reduce crosstalk thus ensuring high speed, error-free data transfer.

Key Features
  • High Speed USB 2.0 A Female to A Female Panel Mount Cable
  • The screw design helps to connect the device tightly
  • Convenient way to combine two USB cables through a panel without any signal loss
  • Support high speed USB 2.0 devices and the transfer rate reaches to 480 Mbps
  • Backward compliant with full-speed USB 1.1 (12 Mbps) and low speed USB 1.0 (1.5 Mbps)
  • Flexible PVC jacket, Foil and braid shielding, and the twisted pair construction make a better performance
Product Specifications
  • Model No.: MPMC2008
  • Available Length: 0.2m
  • Available Gauge: 28/24AWG
  • Color: Black or Customized
  • Nylon mesh: Customized
  • Connector: Gold or Nickel plated
  • Packing: PE bag, Zip bag, Box, Hang card, Blister
  • Approval: RoHS Compliant
Electrical Characteristics
  • Nominal Velocity of Propagation – 480Mbps
  • DC Resistance – 300V
  • Dielectric Strength – AC 500V/minute
  • Insulation Resistance – 10MΩ
Physical Characteristics:
  • Voltage Rating – 30V
  • Maximum Bend Radius – 90mm
  • Temperature Rating – 80℃
  • Operating Temperature Range – -20℃- 80℃
  • Storage Temperature Range – -25℃- 85℃
  • Approvals – RoHS, CE, UL Compliant
Conductor 1 (1 pair)
  • Conductor Type – 28AWG Tinned Copper
  • Insulation – Foamed PE SKIN
  • Shield – Aluminum Foil, 100% Coverage
Conductor 2 (2 cores)
  • Conductor Type – 24AWG Tinned Copper
  • Insulation – HDPE
Overall Cable
  • Drain Wire – 28AWG Bare Copper
  • Foil Shield – Aluminum Foil, 100% Coverage
  • Braided Shield – 16/4/0.10, CCS
  • Jacket – PVC, Black, O.D.: 4.8±0.2mm
Connectors
  • Connector Type – USB 2.0 A Female
  • Pin Construction – Phosphor Copper
  • Injection – 45P PVC
  • Plating – Nickel
