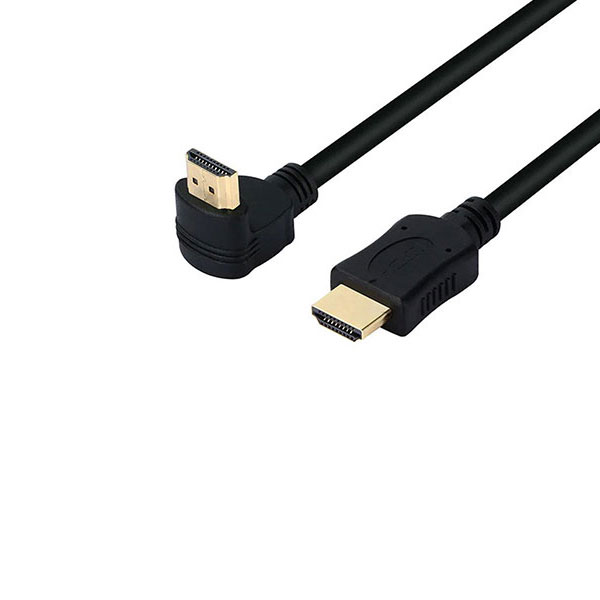

L Angle Cable #MHDM4007

Key Features

• High Speed HDMI cable with Ethernet
• Convenient way to extend your existing HDMI cable without any signal loss
• Enables transmission of High Dynamic Range (HDR) video
• Bandwidth up to 18Gbps
• 4K@50/60 (2160p), which is 4 times the clarity of 1080p/60 video resolution
• 3D video, Deep Color and x.v. Color™
• Dolby® True HD, DTS-HD Master Audio and up to 32 audio channels for a multi-dimensional immersive audio experience
• Up to 1536kHz audio sample frequency for the highest audio fidelity
• Simultaneous delivery of dual video streams to multiple users on the same screen
• Simultaneous delivery of multi-stream audio to multiple users (up to 4)
• Support for the wide angle theatrical 21:9 video aspect ratio
• Dynamic synchronization of video and audio streams
• CEC extensions for control of consumer electronics devices through a single control point

Note: Both the source device and display must support a HDMI feature in order to pass that feature through this cable

Product Specifications

• Model No: MHDM4007
• Available Length: 0.5m 1m 1.5m 1.8m 3m 5m 7.5m 10m
• Available Gauge: 30AWG(1-3m) 28AWG( 3-7.5m) 26AWG (10m)
• Color: Black or Customized
• Nylon mesh: Customized
• Ferrite Core: Customized
• Connector: Gold or Nickel plated
• Packing: PE bag, Zip bag, Box, Hang card, Blister
• Approval: RoHS Compliant

Electrical Characteristics

• Nominal Velocity of Propagation – 18Gbps
• DC Resistance – 300V
• Dielectric Strength – AC 500V/minute
• Insulation Resistance – 100Ω
• Nominal Attenuation – 300kHz-825MHz – <5dB, 825MHz-2.475GHz – <5dB, 2.475GHz-4.125GHz – <12dB, 4.125GHz-5.1GHz – <20dB

Physical Characteristics:

• Voltage Rating – 30V
• Maximum Bend Radius – 90mm
• Temperature Rating – 80℃
• Operating Temperature Range – -20℃- 80℃
• Storage Temperature Range – -25℃- 85℃
• Approvals – RoHS, CE, UL Compliant

Conductor 1 (5 pair)

• Conductor Type – 30AWG Bare Copper
• Insulation – Foamed PE SKIN
• Drain Wire – 30AWG Bare Copper
• Shield – Aluminum Foil, 100% Coverage

Conductor 2 (4 Conductors)

• Conductor Type – 30AWG Bare Copper
• Insulation – HDPE

Overall Cable

• Drain Wire – 30AWG Bare Copper
• Foil Shield – Aluminum Foil, 100% Coverage
• Braided Shield – 16/4/0.12, Al/Mg
• Jacket – PVC, Black, O.D.: 6.0±0.2mm

Connector 1

• Connector Type – HDMI Type A Male
• Pin Construction – Phosphor Copper
• Injection – 45P PVC
• Plating – 1 µm Gold

Connector 2

• Connector Type – HDMI Type A Female
• Pin Construction – Phosphor Copper
• Injection – 45P PVC
• Plating – 1 µm Gold
