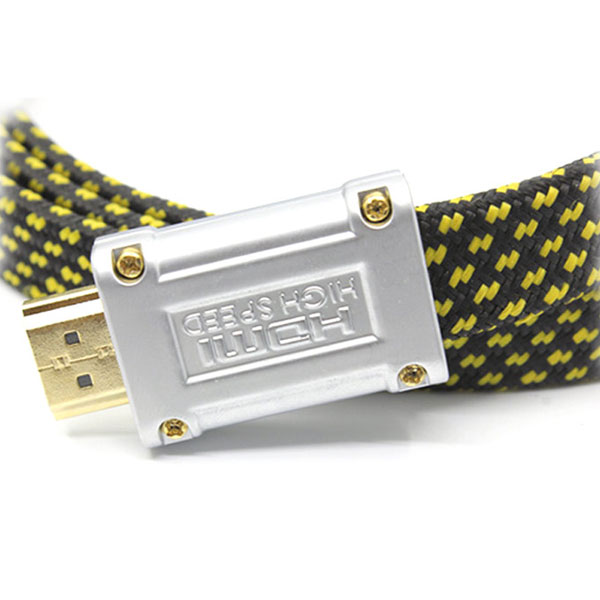

High Quality Flat HDMI Cable with Metal Housing #MHDM4003
High Quality Flat HDMI Cable with Metal Housing is perfect for home theater or desktop audio video applications. Supports 3D and 4K*2K@50/60 (2160p) Ultra HD video resolutions. The Ethernet capabilities of the cable allow a user to connect multiple Ethernet enabled HDMI devices through a single Ethernet connection for accessing interactive online content or updating device firmware. The flat cable design make the cabling flexible and easy at tight spaces. High quality materials and construction ensure a lifetime of dependable performance. Fully-shielded conductors provide complete immunity to EMI/RFI interference, and 24-K gold plated connectors ensure superior signal transfer.
Key Features
- High Speed HDMI cable with Ethernet
- Durable and protective Metal housing Connectors
- Flat cable design make the cabling easier at tight spaces
- Enables transmission of High Dynamic Range (HDR) video
- Bandwidth up to 18Gbps
- 4K@50/60 (2160p), which is 4 times the clarity of 1080p/60 video resolution
- 3D video, Deep Color and x.v. Color™
- Dolby® True HD, DTS-HD Master Audio and up to 32 audio channels for a multi-dimensional immersive audio experience
- Up to 1536kHz audio sample frequency for the highest audio fidelity
- Simultaneous delivery of dual video streams to multiple users on the same screen
- Simultaneous delivery of multi-stream audio to multiple users (up to 4)
- Support for the wide angle theatrical 21:9 video aspect ratio
- Dynamic synchronization of video and audio streams
- CEC extensions for control of consumer electronics devices through a single control point
Note: Both the source device and display must support a HDMI feature in order to pass that feature through this cable
Product Specifications
- Model No.: MHDM4003
- Available Length: 0.5m 1m 1.5m 1.8m 3m 5m 7.5m 10m
- Available Gauge: 30AWG(1-3m) 28AWG( 3-7.5m) 26AWG (10m)
- Color: Black or Customized
- Nylon mesh: Customized
- Ferrite Core: Customized
- Connector: Gold or Nickel plated
- Packing: PE bag, Zip bag, Box, Hang card, Blister
- Approval: RoHS Compliant
- Vendor : Umacable
Electrical Characteristics
- Nominal Velocity of Propagation – 18Gbps
- DC Resistance – 300V
- Dielectric Strength – AC 500V/minute
- Insulation Resistance – 100Ω
- Nominal Attenuation – 300kHz-825MHz – <5dB, 825MHz-2.475GHz – <5dB, 2.475GHz-4.125GHz – <12dB, 4.125GHz-5.1GHz – <20dB
Physical Characteristics:
- Voltage Rating – 30V
- Maximum Bend Radius – 90mm
- Temperature Rating – 80℃
- Operating Temperature Range – -20℃- 80℃
- Storage Temperature Range – -25℃- 85℃
- Approvals – RoHS, CE, UL Compliant
Conductor 1 (5 pair)
- Conductor Type – 30AWG Bare Copper
- Insulation – Foamed PE SKIN
- Drain Wire – 30AWG Bare Copper
- Shield – Aluminum Foil, 100% Coverage
Conductor 2 (4 Conductors)
- Conductor Type – 30AWG Bare Copper
- Insulation – HDPE Overall Cable
- Drain Wire – 30AWG Bare Copper
- Foil Shield – Aluminum Foil, 100% Coverage
- Braided Shield – No
- Jacket – PVC, Black, O.D.: 12±0.2mm*2.7±0.2mm
Connectors
- Connector Type – HDMI Type A Male
- Pin Construction – Phosphor Copper
- Injection – Zinc Alloy
- Plating – 1 µm Gold
