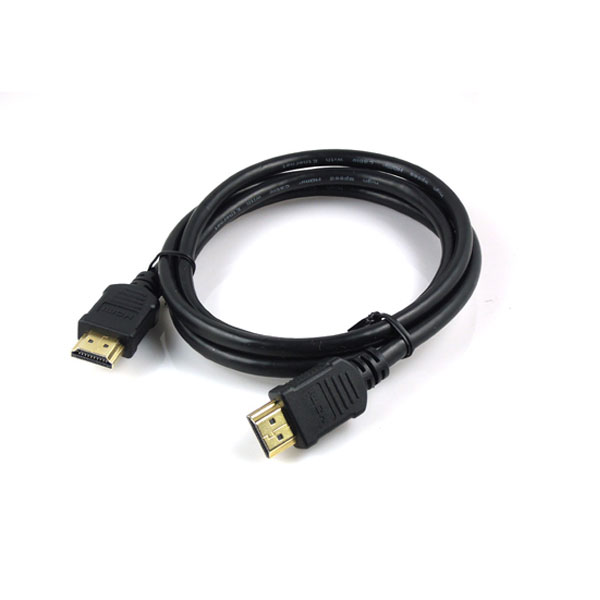

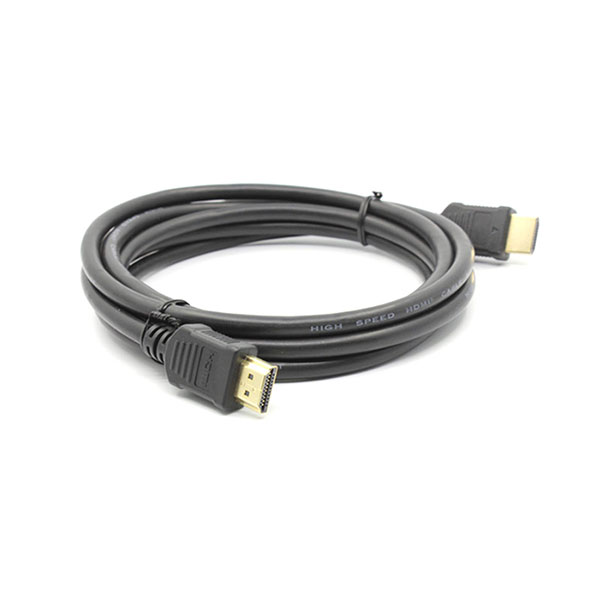

HDMI Cable A male to A male #MHDM4001

High Speed HDMI with Ethernet Cable is perfect for home theater or desktop audio video applications. Supports 3D and 4K*2K@50/60 (2160p) Ultra HD video resolutions. The Ethernet capabilities of the cable allow a user to connect multiple Ethernet enabled HDMI devices through a single Ethernet connection for accessing interactive online content or updating device firmware. High quality materials and construction ensure a lifetime of dependable performance. Fully-shielded conductors provide complete immunity to EMI/RFI interference, and 24-K gold plated connectors ensure superior signal transfer.

Key Features
  • High Speed HDMI cable with Ethernet
  • Enables transmission of High Dynamic Range (HDR) video
  • Bandwidth up to 18Gbps
  • 4K@50/60 (2160p), which is 4 times the clarity of 1080p/60 video resolution
  • 3D video, Deep Color and x.v. Color™
  • Dolby® True HD, DTS-HD Master Audio and up to 32 audio channels for a multi-dimensional immersive audio experience
  • Up to 1536kHz audio sample frequency for the highest audio fidelity
  • Simultaneous delivery of dual video streams to multiple users on the same screen
  • Simultaneous delivery of multi-stream audio to multiple users (up to 4)
  • Support for the wide angle theatrical 21:9 video aspect ratio
  • Dynamic synchronization of video and audio streams
  • CEC extensions for control of consumer electronics devices through a single control point

    • Note: Both the source device and display must support a HDMI feature in order to pass that feature through this cable
Product Specifications
  • Model No.: MHDM4001
  • Available Length: 0.5m 1m 1.5m 1.8m 3m 5m 7.5m 10m
  • Available Gauge: 30AWG(1-3m) 28AWG( 3-7.5m) 26AWG (10m)
  • Color: Black or Customized
  • Nylon mesh: Customized
  • Ferrite Core: Customized
  • Connector: Gold or Nickel plated
  • Packing: PE bag, Zip bag, Box, Hang card, Blister
  • Approval: RoHS Compliant
Electrical Characteristics
  • Nominal Velocity of Propagation – 18Gbps
  • DC Resistance – 300V
  • Dielectric Strength – AC 500V/minute
  • Insulation Resistance – 100Ω
  • Nominal Attenuation – 300kHz-825MHz – <5dB, 825MHz-2.475GHz – < 5dB, 2.475GHz-4.125GHz – < 12dB, 4.125GHz-5.1GHz – < 20dB
Physical Characteristics:
  • Voltage Rating – 30V
  • Maximum Bend Radius – 90mm
  • Temperature Rating – 80℃
  • Operating Temperature Range – -20℃- 80℃
  • Storage Temperature Range – -25℃- 85℃
  • Approvals – RoHS, CE, UL Compliant
Conductor 1 (5 pair)
  • Conductor Type – 30AWG Bare Copper
  • Insulation – Foamed PE SKIN
  • Drain Wire – 30AWG Bare Copper
  • Shield – Aluminum Foil, 100% Coverage
Conductor 2 (1 Conductors)
  • Conductor Type – 30AWG Bare Copper
  • Insulation – HDPE
Overall Cable
  • Drain Wire – 30AWG Bare Copper
  • Foil Shield – Aluminum Foil, 100% Coverage
  • Braided Shield – 16/4/0.12, Al/Mg
  • Jacket – PVC, Black, O.D.: 6.0±0.2mm
Connectors
  • Connector Type – HDMI Type A Male
  • Pin Construction – Phosphor Copper
  • Plating – 1 µm Gold
